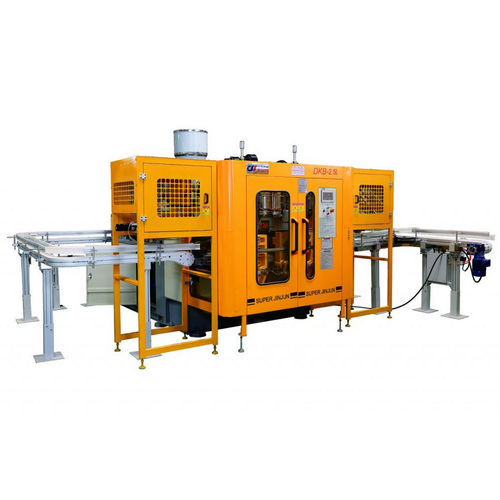

Extrusion blow molding machine DKB-2.5LD

for PPfor PEfor PVC

bottle for edible oil, single-double color lubricants, single-double color cosmetics, 3 layer pesticide, 5 layer food , clinic infusion, toys, plastic volume in 0.3-2.5L, plastic material:PE、PP、PETG,PVC、PS、PC、 TPU、ABS、PA、EVA etc. Features HMI Touch Screen, Incorporating with PLC system (Optional Siemens/B&R Control) for easy maintenance. Blowing Unit/ Die Head movement for changing mold easily, as option. Built with safety devices to provide maximum protection for the machine operator. High plasticizing capacity extrusion screw is designed to handle material variations. Plasticizing screw and barrel is precision machined from special nitrogen treated steel. Water cooling technology controls feed zone temperature. Chiller circulated hydraulically controlled blow-pin. When requiring both functions in a single machine, purchase the machine for PVC application and order the additional parts (screw and die head ) for conversion to PE application. Double Station Single/Double/Triple/Q.12 Head Horizontal Operated Clamping System Production Volume:2ml~3L Multi layers: Co-Extrusion 1-6 Layers Multi cavities: 1~12 cavities Specialize for the PE/PP/PETG/PVC/Nylon/Co-Extrusion material Special function: View Stripe Clamping system: Toggle/3 Tie Bar/4 Tie Bar Driven Model: Hybrid servo motor drive system/ High performance hydraulic power saving system/Close loop proportional valve Support Parison controller/Auto Deflashing/Auto Recycling/Auto material feeder/Remote trouble shooting funciton/IML(in mold labeling) Advantages Clamp sizes / quantity to match all requirements
