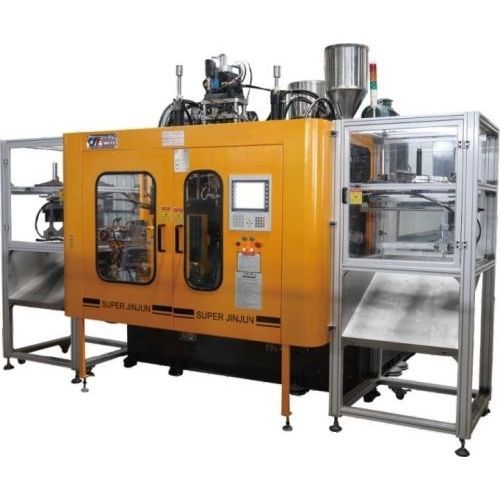

Extrusion blow molding machine DKB-10L

for PPfor PEfor PVC

• - HMI Touch Screen, Incorporating with PLC system (Optional Siemens/B&R Control) for easy maintenance. • - Blowing Unit/ Die Head movement for changing mold easily, as option. • - Built with safety devices to provide maximum protection for the machine operator. • - High plasticizing capacity extrusion screw is designed to handle material variations. • - Plasticizing screw and barrel is precision machined from special nitrogen treated steel. • - Water cooling technology controls feed zone temperature. • - Chiller circulated hydraulically controlled blow-pin. • - When requiring both functions in a single machine, purchase the machine for PVC application and order the additional parts (screw and die head ) for conversion to PE application. Advantages • - Clamp sizes / quantity to match all requirements • - Easily configured for monolayer and multi-layer applications • - Single or multi parison • - Efficient electric drive(s) on extrusion system • - Low profile for ease of operator access • - Part removal and trimming matched to the application • - In-mold labeling and view stripe capable • - Lowest investment cost for high-speed applications • - Extreme bottle quality consistency Screw Diameter - mm - 80 Screw L/D Ratio - L/D - 28:1 Extrusion motor - KW - 45 Oil pressure motor - KW - 23 Screw rotate speed - R.P.M - 10-70 Screw heating zone - Parts - 5 Heating power - KW - 30 Parison motor option - KW - 3.75 Extruding Capacity HDPE - kg/h - Approx.110-120 Mold
