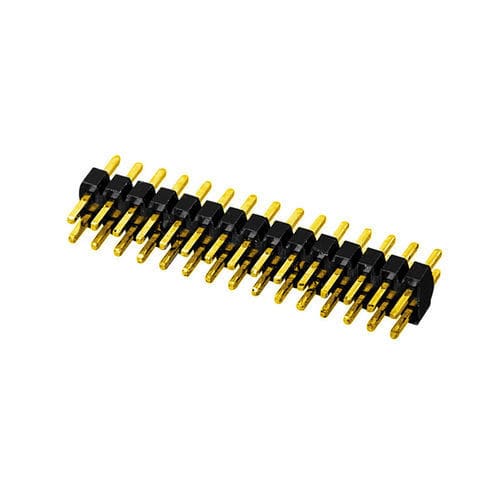

Male pin header L202XX-XX0XXXXXdouble-rowstraightright-angle
Add to favorites
Compare this product
Characteristics
- Type
- male
- Form
- double-row
- Other characteristics
- straight, right-angle
- Pitch
- 1.00 mm (0.039")
Description
Part No: L202XX-XX0XXXXX
Mating:L302XX
Packing:Tray
Delivery time:7~15 Day
UL:Yes
ROHS Compliant
Rated Current - 0.75AMP
Contact Resistance - 30mΩ Max
Withstand Voltage - 500V AC/DC
Insulation Resistance - 1000MΩ Min
Operation Temperature - ﹣40℃ to +105℃
Contact Material - Brass
Contact Plating - Au over Ni
Insulator Material - PA9T+30％G.F UL94V-0 BK
