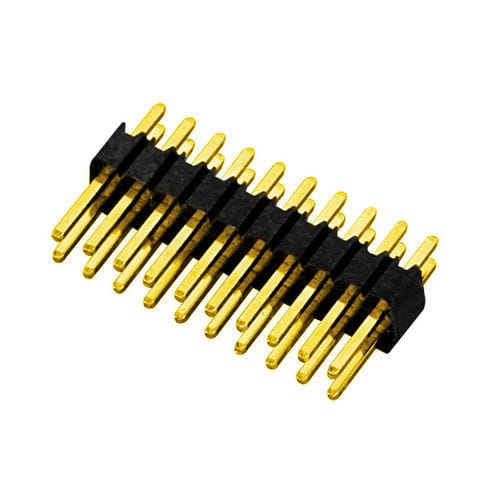

Male pin header L206XX-XX0XXXXXdouble-rowstraightright-angle
Add to favorites
Compare this product
Characteristics
- Type
- male
- Form
- double-row
- Other characteristics
- straight, right-angle, SMT
- Pitch
- 2.00 mm (0.079")
Description
Part No: L206XX-XX0XXXXX
Mating:L306XX
Packing:Tube,Reel,Bag
Delivery time:7~15 Day
UL:Yes
ROHS Compliant
Rated Current - 2.0AMP
Contact Resistance - 20mΩ Max
Withstand Voltage - 500V AC/DC
Insulation Resistance - 1000mΩ Min
Operation Temperature - ﹣40℃ to +105℃
Contact Material - Brass
Contact Plating - Au Or Sn over Ni
Insulator Material - PA9T Black+30％GF UL94V-0 BK
