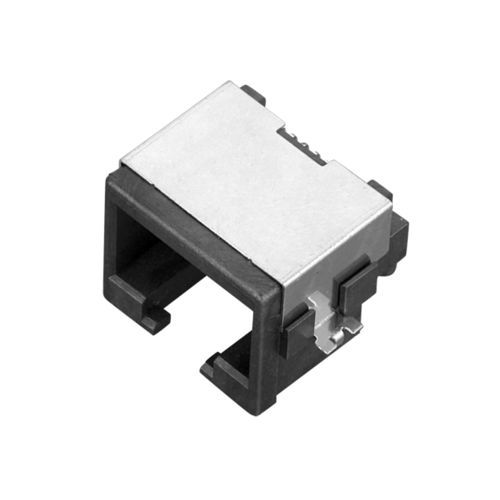

Data connector L60068-1X01XRJ45voltagecurrent
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- RJ45
- Electrical characteristics
- voltage, current, DC, DC
- Material
- PBT, nickel, bronze
- Product applications
- board, housing
- Primary current
1.5 A
- Voltage
125 V
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 70 °C
(158 °F)
Description
Part No: L60068-1X01X
Mating:
Packing:Pray
Delivery time:7~15 Day
UL:Yes
ROHS Compliant
Contact Resistance - 20mΩ max
Withstand Valtage - 1000V DC/O.5mA For 1 minute.
Insulatian Resistance - 500MΩ min At 500V DC
Cantact Material - Phosphor Bronze, φ0.46mm.
Cantact Plating - Au Over NICKEL
Housing Material - PBT/LCP UL94V-O
DURABILITY - 750 CYCLES MIN.
