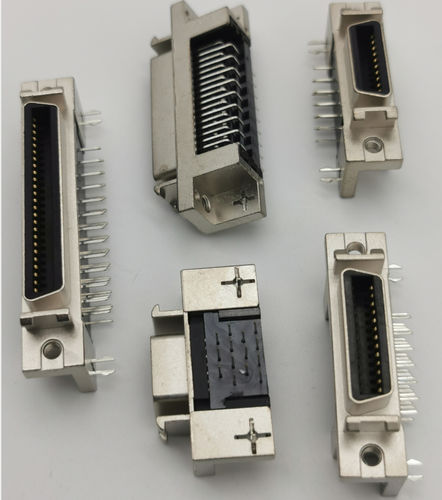

Data connector SCSIfemaleinsulation
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- SCSI
- Connection type
- female
- Electrical characteristics
- insulation, voltage, current, AC
- Material
- zinc, bronze, shell
- Product applications
- cover
- Other characteristics
- DIP
- Primary current
3 A
- Voltage
500 V
- Operating temperature
Max.: 105 °C
(221 °F)Min.: -40 °C
(-40 °F)
Description
Mating:
Pin Count:14P/ 20P/ 26P/ 36P/ 50P
Packing:Tube
Delivery time: 10~15 Day
UL: Yes
ROHS Compliant
Current Rating - 3.0 AMP
Contact Resistance - 35mΩ Max
Withstand Voltage - 500V AC/DC
Insulation Resistance - 500MΩ min
Operation Temperature - ﹣40℃ to +105℃
Contact Material - Phosphor Bronze
Contact Plating - Au Or Sn Over Ni
Shell Material - Zinc Alloy
Shell Plating - Ni 100U"
Fixing Material - Phosphor Bronze
Fixing Plating - Sn over Ni
Insulator Material - PBT+30%G.F UL94V-0
Cover Material - PBT+30%G.F UL94V-0
