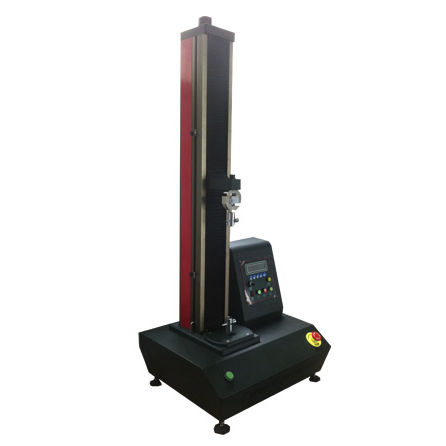

Tensile testing machine LT-LLZ01-BS

manualfor plasticsfor rubber

Five Advantages Of Products Single-column desktop tensile testing machine electronic tensile machine easy to operate accurate test results meet various test standards The product description This series of tensile strength testing machine adopts Load Cell induction digital display, which can accurately test the tensile strength and breaking strength of textile, plastic, and rubber. The built-in multi-country standard test mode can also be set according to requirements. Conform to the standard In line with GB, JIS, ASTM, DIN, EN, BS, UL, AATCC standards related requirements. Technical parameters 1. Capacity selection: 10kg, 20kg, 50kg, 100kg, 200kg, 500kg 2. Unit switch: Kg, G, Lb, N four kinds of units can be arbitrarily converted 3. Load decomposition degree: 1/10,000 4. Load accuracy: ±0.5% 5. Maximum stroke: 600mm 6. Speed input mode: knob type 7. Effective Width: Unlimited 8. Test speed: 10 ~ 250 mm/min or 50 ~ 500 mm/min optional 9. Speed accuracy: ±1% 10 displacement decomposition degree: 0.001mm 11. Display: can display the test value, maximum value, or rupture value 12. Motor: AC variable frequency motor 13. Volume: about 500*470*1280mm 14. Weight: about 75Kg 15. Power: 1∮,AC220V,3A 16. Accessories: a set of stretching fixture
