Performance testing machine LT-JC13

impactPLC-controlledfor door hinges

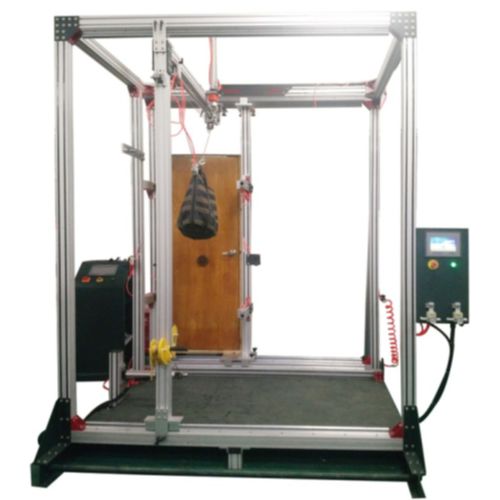

Five Advantages Of Products anti-impact performance testing Machine structure: aluminum profile meet various standards accurate testing results easy to operate Product Details LT-JC13 Full door and window, flat open, vertical revolving door, static distortion resistance and soft weight impact performance testing machine The product description A vertical static loading force is applied to the designated position at the top and bottom of the door to detect its deformation; A soft weight perpendicular to the plane of the door is impinged on one or more of the estimated weak spots on one side of the door to test for damage. Conform to the standard GBT 29049-2012 vertical load test of integral door GBT 29530-2013 determination of static distortion resistance of flat and revolving doors GBT 14155-2008 impact test of soft and heavy objects on whole frame doors Technical parameters (a) integral window, flat opening, vertical revolving door, resistance to static distortion technical parameters: 1. Vertical cylinder: diameter: 63mm, output: 50-200kg 2. Vertical cylinder stroke: 500mm 3. Horizontal cylinder: diameter: 63mm, output: 50-200kg 4. Horizontal cylinder stroke: 500mm 5. Control mode: touch screen +PLC 6. Fixed mode of door: pneumatic 7. Deformation: digital display displacement table, 0-50mm, accuracy 0.1mm 8. Machine structure: aluminum profile 9. Power supply: AC220V 10. Machine size: 1500 (length) *1500 (width) *2500mm (height) 11. Air source: stable air source above 7kgf/cm^2
