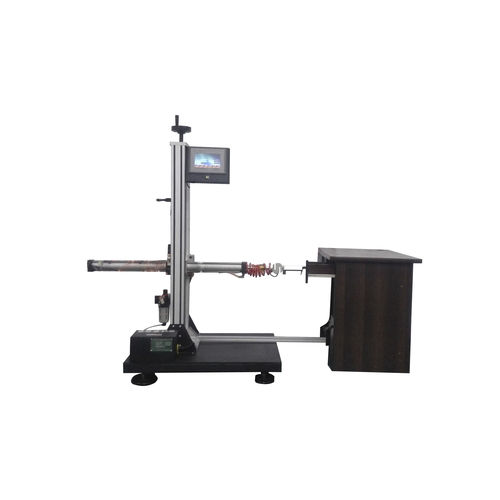

Durability testing machine LT-JJ15-1

PLC-controlledfor desk drawer sliding railspneumatic

Five Advantages Of Products Force sensor and PLC control force value Ball screw manual control of working height Imported brand pneumatic accessories and cylinder products Work long hours without attended Good quality and reliable Description: This machine is suitable for testing the durability of drawer slide rails installed on furniture, and can also set the force value for destructive experiments and determine the drawer push and pull. Function: Mainly for the life and durability test of draws, Durability test: put a certain load in the drawer, pull out and close the drawer repeatedly, cycle a certain number of times, check whether the slide can meet the use requirements Destructive test: apply a certain force on the parts of the furniture to check whether the parts are damaged under a certain load Meet standards: QB/T 10357.5-2011 QB/T 2454-2013 BIFMA X5.5-2008 Parameter: 1: The tensile displacement: 0-1500mm 2: Drawer height: 150-1300mm adjustable 3: Load force: 500N 4: Speed: 5-15times/min
