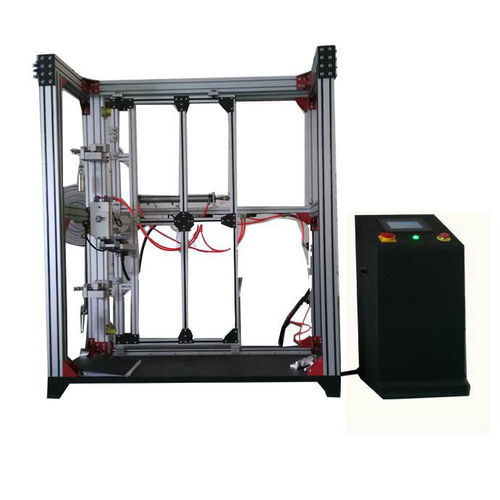

Fatigue testing machine LT-JC04

durabilityPLC-controlledfor door locks

Five Advantages Of Products Multi-point lock fatigue tester The test device can be moved horizontally or up and down to facilitate different tests Equipped with other auxiliary fixtures and test devices, more project tests can be completed The machine is beautiful, without exposed moving parts, and easy to operate The ground spring test device is configured at the same time The product description This machine is suitable for testing the durability of floor lock on decorative doors. The sample is connected to the instrument to simulate the situation on the ground during daily use The spring is opened and closed repeatedly, and the hinge is checked for damage or other conditions that may affect use after a certain number of cycles. Conform to the standard Comply with relevant requirements of QB/T 2697-2013 standard Technical parameters 1. Test speed: adjustable for 1-10 times /min 2. Cylinder stroke :900mm 3. Maximum beam height :1100mm 4. Opening Angle: 0 ~ 90 degrees 5. Counter requirements: 0 ~ 9,99999 6. Motor: servo motor 7. Size: 250 * 160 * 240 cm (W * D * H) 8. Weight: about 110Kg 9. Air source: stable air source above 7kgf/cm2 10. Power supply :1 AC 220V 50Hz 3A Product features 1. Quick pneumatic clamping hinge is fixed on the machine. 2. The test device can be moved horizontally or up and down to facilitate different tests. 3. Equipped with other auxiliary fixtures and test devices, more project tests can be completed. 4. The machine is beautiful, without exposed moving parts, and easy to operate. 5. The ground spring test device is configured at the same time.
