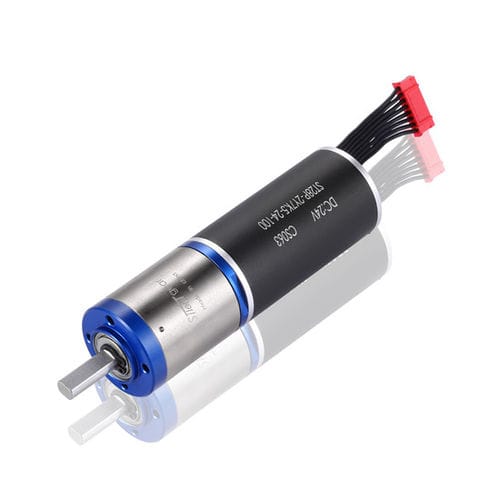

Brushless gear-motor ST28P-3Y4K6-12- 100
planetarycoaxial50 W...100 W

Brushless gear-motor - ST28P-3Y4K6-12- 100 - Dongguan Silent Industry Co.,Ltd - planetary / coaxial / 50 W...100 W
Brushless gear-motor - ST28P-3Y4K6-12- 100 - Dongguan Silent Industry Co.,Ltd - planetary / coaxial / 50 W...100 W
Add to favorites
Compare this product


Characteristics

Motor type
brushless
Type
planetary
Shaft orientation
coaxial
Power
50 W...100 W
Voltage
48 V, 24 V, 12 V
Torque
1 - 5 Nm, 5 - 10 Nm

Description

Product overview: Planetary gearheads feature extremely high power transmission with a very short design. The modular design and the scaled stages provide the basis for a customer-specific solution. Metal components make use in a wide range of applications possible.At the same time they have a very compact form, low weight, and excellent efficiency. Self-centering planet gears ensure a symmetrical force distribution. The ring gear also forms the housing of the gearbox. The gearbox output shaft is supported in two ball bearings so that it can withstand high axial and radial loads. The gearboxes are customized, e.g. for use in especially low ambient temperatures, or as high-power gearboxes with reinforced output shafts, or with special lubricants for very long service life. Key specifications:  Gearbox OD: 28mm  Rated voltage:3VDC to 48VDC or customized voltage  Gearbox length: 28 to 49mm  Reduction ratio: 1:3.7 to 1:1012  Rated torque: 34 to 2940mN*m  Rated speed: 7 to 1838RPM Typical applications:  ATM in bank,Robot,Door-lock,Auto shutter, USB fan,Slot machine,Money detector, Coin refund devices  Currency count machine, Towel dispensers, Automatic doors,Peritoneal machine  Automatic TV rack, Office equipemt ,Household appliances,Automatic, medical screwdriver, robotic arms  Lab stirrer, Cosmetology instrument, Medical devices, Hairdressing equipment,Cameras,Health-care articles Miscellanea:  Please contact us to get detailed specifications and drawings for the geared motor you're looking for.  We are able to design and produce the geared motor you specified.(OEM & ODM).  Please visit us at www.silentgearmotor.com to get more information.

Catalogs

No catalogs are available for this product.

See all of Dongguan Silent Industry Co.,Ltd‘s catalogs
