DC motor D107L165-WC

brushless110 V20 V

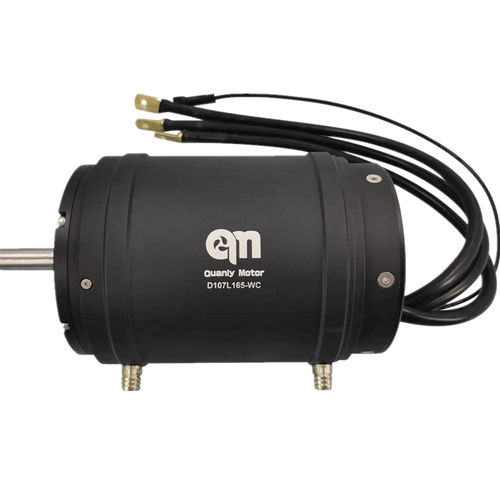

D107L165 Water Cooled Brushless Motor 30KW D107L165 motors are designed for high performance gearless use, and are ideal for underwater thruster applications where rapid acceleration and high speed are called for. Protection Level: IP64 Diameters at 107mm Configuration: 12N/10P Speeds up to 9,500 rpm Maximum output power up to 31KW Maximum Torque output up to 56N*m Cooling Solution: Water cooling Thanks to the modern sealing technology, these water-cooling motors are usually customized to fit into water-tight chamber shell to form a whole motor system, and are not expected to dip in water. They have been widely used for high speed underwater thruster in various underwater thruster, like small boat motor, jetboard, outboard motor, electric trolling motor, electric jet drive system, etc Key features: Robust & durable: Outer shell in black anodizing aluminum alloy, prevent against corrosion and oxidation. High performance: Our motors provide extremely high torques with a minimum of power consumption. Silient: low-cogging electro-magnetic and dynamically balanced rotor, extremely silient and smooth operation. High Efficiency: Our energy-efficient motors save energy and costs, efficiency up to 90%. Compact: High efficiency and high power density realized in a compact design. Long life: Double seal ball bearings with moisture resistant for long life. Cooling solution: water-cooling & Air-Cooling. Shaft in SS316 Stainless Steel: withstand redial/axile stree,and against corrosion. Can be customized for Sensor or sensorless Winding Current Shaft Options Cable and Connector Kv Ratings Mounting Options Encoder or Non
