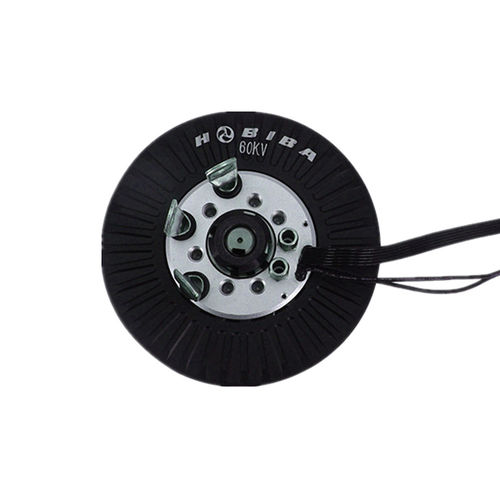

DC wheel motor D115L56brushless36 V48 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 36 V, 48 V, 100 V
- Configuration
- permanent magnet, external rotor
- Cooling mechanism
- water-cooled
- Applications
- for marine applications, for motorcycles, for industrial applications
- Other characteristics
- high-torque, low-noise
- Power
Max.: 18.8 kW
(25.561 hp)Min.: 0 kW
(0 hp)- Intensity
Max.: 600 A
Min.: 0 A
- Torque
Max.: 26 Nm
(19.1766 ft.lb)Min.: 0 Nm
(0 ft.lb)- Rotational speed
Max.: 11,000 rpm
(69,115.04 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Diameter
115 mm
(4.53 in)- Operating temperature
Max.: 120 °C
(248 °F)Min.: -40 °C
(-40 °F)
Description
Quanly 's 'cool' motor technology, significantly boosts torque and sustained power output while being compacter, smaller, lighter and cheaper to manufacture than other competitor motor, widely used in electric vehicles, EVs, motorbikes, etc.
- Sensor or sensorless
- Winding current
- Shaft options
- Cable & connectors
- KV rating
- Mounting options
- Encoder or not
