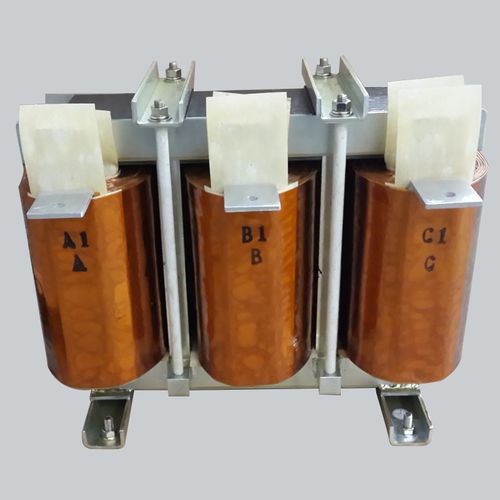

Filter coil three-phasefor solar inverterscopper wire
Add to favorites
Compare this product
Characteristics
- Technology
- filter
- Electrical characteristics
- three-phase
- Applications
- for solar inverters
- Other characteristics
- copper wire
- Primary current
2,000 A
- Voltage
1,200 V
Description
Product introduction：
Photovoltaic reactor is photovoltaic inverter reactor. Solar photovoltaic power generation system USES solar photovoltaic modules to convert solar energy into direct current energy, and then inverts direct current into alternating current through inverter. The main purpose is to suppress the influence of high frequency harmonics in dc-ac transformation on the power grid, reduce the harmonic current, and make the inverter output AC current meet the requirements of grid connection.
Technical parameters.
Rated working voltage：
2000A Max
System voltage：
1200V Max
The fundamental frequency：
50/60Hz
Switching frequency：
1.5KHz-6KHz
Work environment：
Height above sea level ：≤3000m，Above 3000m can be used for derating
The environment temperature：-25~55℃
Insulation class：
F/H class
Hi-pot：
Core - winding 3000VAC 50Hz 60s, no damage
Insulation resistance：
Over 100 m Ω core - winding 1000 VDC
Protect grade：
IP00，can be customized according to customer requirement
Winding material：
Copper/Aluminum
Noise：
≤70dB
Producr size：
According to customer requirement
Product execution standard:
GB1094.6《Power transformers - part 6: reactors》
SJ 3270《Safety requirements for isolating transformers》
