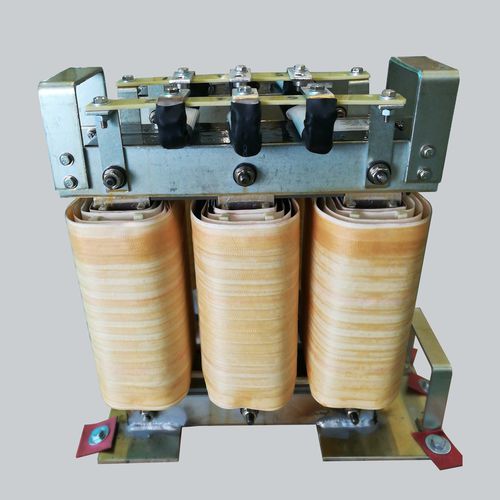

Power factor coil three-phasefrequency inverter
Add to favorites
Compare this product
Characteristics
- Electrical characteristics
- power factor, three-phase
- Applications
- frequency inverter
- Primary current
2,000 A
- Voltage
1,200 V
Description
Product introduction：
The input reactor is installed between the power grid and the input line of the inverter, limiting the voltage drop of the input line of the inverter, inhibiting the thyristor dv/dt and di/dt, which can improve the power factor of the inverter and suppress the harmonic current, protect the motor drive electronic components, limit the inrush current, reduce the commutation gap, and improve the actual power factor of the inverter
Technical parameters:
Rated current：
2000A Max
System voltage：
1200V Max
Working frequency：
50/60Hz
Work environment：
Height above sea level：≤3000m，Above 3000m can be used for derating
The environment temperature：-25~55℃
Insulation calss：
F/H class
Hi-pot：
Core - winding 3000VAC 50Hz 60s, no damage
Insulation resistance：
Over 100 m Ω core - winding 1000 VDC
Protecting grade：
IP00，can be customzied according to customer requirements
Winding material：
Copper/Aluminum
Noise：
≤70dB
Product size：
According to customer requirements
Product execution standard
GB1094.6《Power transformers - part 6: reactors》
SJ 3270《Safety requirements for isolating transformers》
