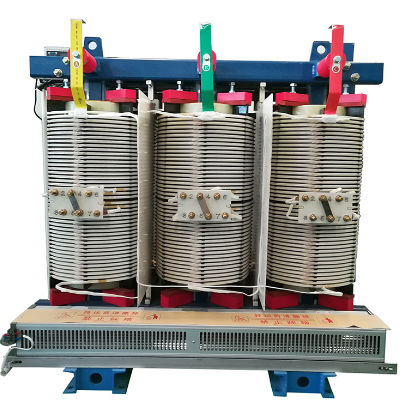

Power transformer SGB series

dryfor industrial applicationsfor railway applications

SG(B) series dry type transformer Benefits: 1. H-Grade Insulation SG10 Series power transformer use NOMEX material and new technology to achieve H-grade insulation, it is reliably used in ambient temperature up to 180℃and the main part of the transformer can sustain up to 220℃. 2. Safety SG10 and SG11 series power transformer using insulated materials which isflame retardant and moisture-proof, the combustible material is only 10% of the epoxy resin transformer. There’s no poisonous fumes during long time burning at 800℃. SG10 and SG11 series power transformer is mainly applied to high safety requirements, moist and poorly ventilated installation site, such as power station, railway, shipbuilding, chemical industry, metallurgic industry. 3. Reliable SG10 and SG11 series power transformer using special coil design and technology to achieve moistureproof, mould proof andfame proof. It can sustain high thermal shock and without rimous nor partial discharge. 4. Strong over-load ability SG10 and SG11 series power transformer can sustain 120% rated capacity. It can longtime running under IP23 without force air cooling. Application With advanced structure and performance,this series transformer can sustain large load fluctuation and over-load, it has high anti-flaming level and can adapt to the high humidity, dusty and other harsh environment. It is widely used in airport, power station, metallurgy industry, hospital, high-rise buildings, shopping center, heavily populated region,petrochemical industry, nuclear power station and nuclear submarine, etc.
