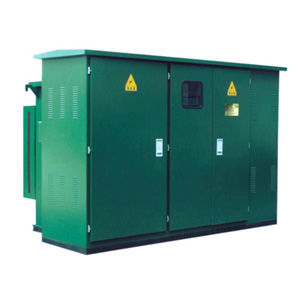

Power distribution substation ZGS11 (American style) series

compactprefabricated

30~2500kVA combined type transformer substation for wind power generator ZGS11-Z.F series combined type transformer substation for wind power generator compliant to 10KV,35KV terminal power supply system, acts as substation, power distribution, measurement, control and protection device. Except transformers, it also contains high quality load switch, backup protective fuse and plug fuse in the high voltage side, and control equipment, electric power distribution, lighting, maintenance in the low voltage side. Insulation and arc extinguishing medium is transformer oil. It's designed to meet the growing demand for wind power supply, with the advantage of compact size, light weight, low noise, low loss, antitheft, strong overload capacity, full range fuse protection, simple maintenance.It meets the combined transformer standard JB/T10217-2000 Service condition 1. Ambient air temperature: -40°C ~ +45°C; 2. Altitude ≤3000m; 3. Wind speed ≤ 70m/s; 4. Contamination grade:≤ IV 5. Installation places should without conductive dust, corrosive nor explosion gas. No violent vibration. 6. Colling: AN If the switchgear will be used in conditions that exceed the normal environmental conditions, please consult with us.
