Automatic strapping machine Q8 seriesfor large productsfor furniturevertical
Add to favorites
Compare this product
Characteristics
- Type
- automatic
- Product applications
- for large products, for furniture
- Other characteristics
- vertical, mobile
- Strap width
Min.: 5 mm
(0.197 in)Max.: 12 mm
(0.472 in)
Description

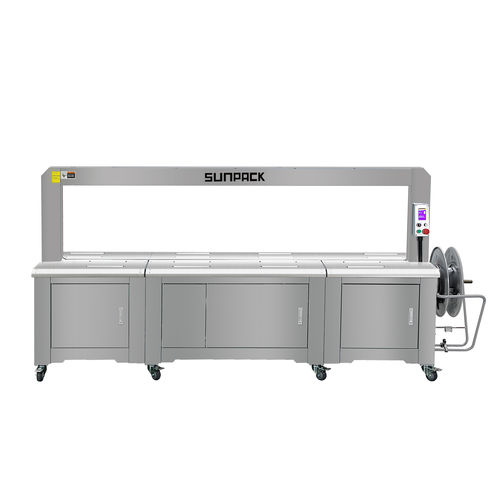

SUNPACK Large Automatic Strapping Machine For Doors, Furniture industry
Technical Data:
Power: 800 W
Material: PP Strapping Band
Table Height: 750 MM
Material Thickness: 0.45-0.8 MM
Material Width: 5, 6, 8, 9, 10, 12MM
Control System: PCB
Tape Core Diameter: 200 MM
Arch Size: 2000 x 800 MM
Tape Core Width: 190 MM
Strapping Speed: 20 Straps / Min
Outline Size: L1255 x W700 x H1400
Net Weight: 300 KGS
Power Supply: 220V/110V 50HZ/60HZ
Features:
Auto Feeding
Direct motor driving, No belts.
Temperature and tension are displayed from the screen
Germany Dunker DC 24V motor, Save power and safety.
Loop ejecting
Instant heating system, persistent temperature
Tension mode: Fixed tension and Fixed length
Switchable Manual and Auto operation
With counting function
One button to clear strap jam
Built for 24 hours of continuous operation
Quick strap loading operation
No tooling required for maintenance
No maintenance for Gearbox
Tension adjustment: Very easy from the control panel
Easy strap loading and unloading
Front and rear pedal operation
