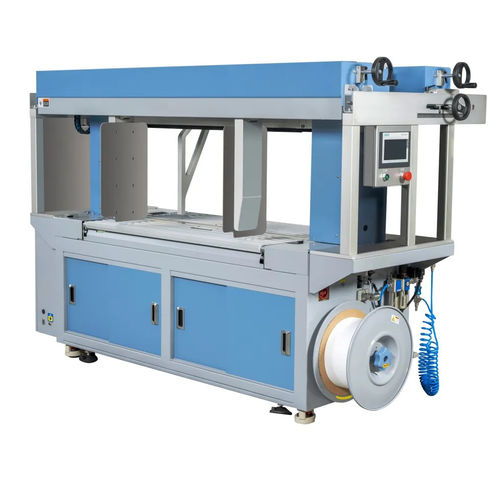

Fully-automatic strapping machine Q80SC-APJ
Add to favorites
Compare this product
Characteristics
- Type
- fully-automatic
- Rate
Max.: 8 p/min
- Strap width
Min.: 5 mm
(0.197 in)Max.: 12 mm
(0.472 in)
Description
Control System：Simens PLC + Touch Screen
Applicable Material：Virgin PP Strapping Band
Arch Size：W1250xH500mm
Max Strapping Size：L x W1200x H 450mm
Min Strapping Size：L 300 x W 300 x H 100mm
Strapping Speed：8 Straps/M
Strapping Tension：2-40kg Adjustable
Table Height：800-900mm Adjustable
Strapping Width：5-6mm /7-8mm/ 9-12mm
Strapping Roll Core：200mm
Strapping Roll Width：190mm
Sealing Method：Heat Sealing
Power Supply：220V 50-60Hz
Max Loading Weight：25kg
Dimension：L 2330 x W 1025 x H 1950mm
Features：
*Squaring ＆ Strapping combined application
*Can run 0.25-0.8mm thickness PP strap
*Power Roller Table
*Manual and auto mode operation
*Loop ejecting function and refeed function
*Auto Feeding
*Built for 24 hours continuous operation
*Banding count function
*Easy strap loading and unloading
