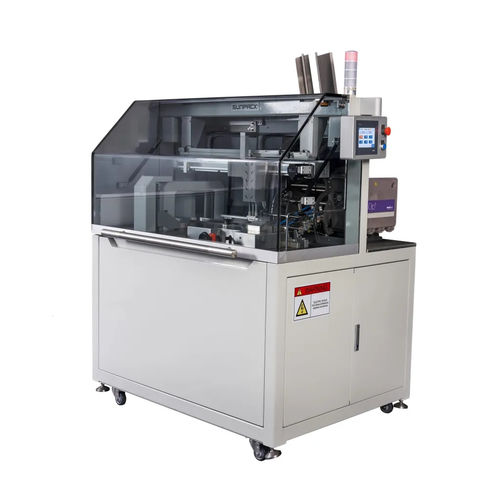

Automatic banding machine WX05-30FBOPP filmfor the printing industry
Add to favorites
Compare this product
Characteristics
- Specification
- automatic, OPP film
- Application
- for the printing industry
Description
Features
*Friction feeder for counting and feeding
*Schneider PLC and touch screen
*Schneider Servo motor
*Ultrasonic cold welding
*No smoke,Environment friendly
*Can be used for humid or moisture environment
Model: WX05-30FB
Description: Automatic ultrasonic banding machine
Applicable Material: OPP film/Paper band
Material Specification: Width: 29.2-29.6mm
Thickness: 120mic
Length: 500meters
Core: 76mm
Arch Size: 300*206mm
Banding Size: Min: 60*110mm
Max: 110*200mm
Table Height - 970-1020mm
Power Supply - 220V 50hz 1phase or 110V 60hz 1phase
Power Rate - 2900W
Control System - Schneider PLC+ Schneider touch screen
Banding Speed - 18 bands/Minute
Banding Tension - 5-40N
Welding Method: Ultrasonic cold welding
NW(KG) - 680kg
Machine Dimension - 1700 x 1900 x 1900mm
