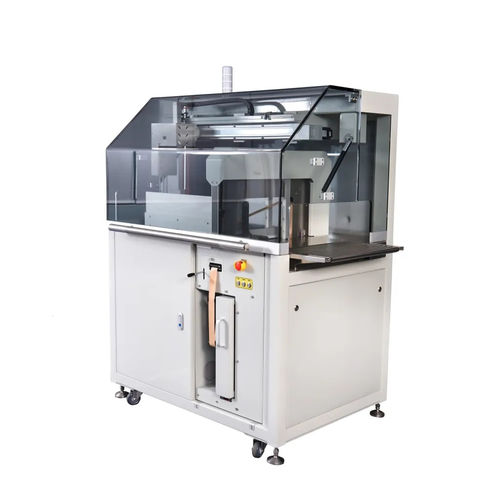

Automatic banding machine WX06-40LBpaperOPP filmfor the printing industry
Add to favorites
Compare this product
Characteristics
- Specification
- automatic, paper, OPP film
- Application
- for the printing industry
Description
Features:
*Schneider touch screen +PLC
*40mm wide band
*Min 40mic OPP film
*Heat Sealing
*Applicable for both paper band and OPP film
*Jumbo roller dispenser to load 500-1200 meters roll
*Schneider Servo motor
*Easy maintenance
*Customize arch size
Model: WX06-40LB
Applicable Material: OPP film or Kraft Paper band
Material Specification - Width: 40mm
Thickness: 40-130 mic,
Length: 500-1200meters
Core: 76mm
Arch Size - 370*208 mm
Banding Size - Min: L100 X W 60MM
Max: L 240 * W 200MM
Table Height - 970-1020mm
Power Supply - 220V 50hz 1phase or 110V 60hz 1phase
Power Rate - 1500W
Control System - PCB+ Schneider touch screen
Banding Speed - 15 bands/Minute
Banding Tension - 5-40N
Welding Method - Heat Sealing
Air Supply - 0.4-0.7mpa
NW - 620KG
Machine Dimension - L1700 X W1900 X H1900MM
