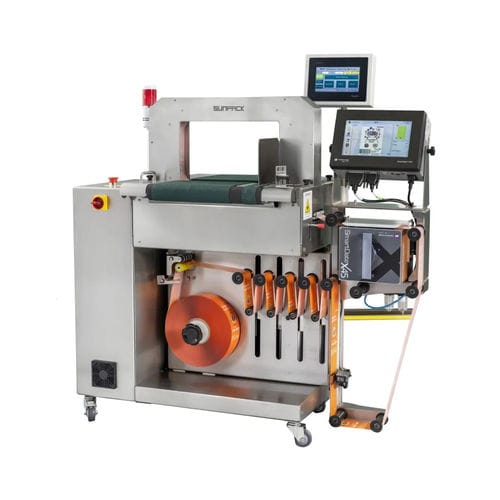

Automatic banding machine WK06-50CA-MRQ

OPP filmwith belt conveyorwith printer

Features *Schneider PLC +Touch screen *Belt power table *SS 314 machine body *With Markem SmartDate X45 thermal transfer printer *30mm/40mm/50mm/75mm/100mm/125mm/150mm wide band *Min 40mic OPP film *60 seconds Pre-Heating time *Heat Sealing *With counter *Applicable for both paper band and OPP film *Jumbo roller dispenser to load 500-1200 meters roll *Schneider Servo Motor *Easy maintenance *Customize arch size Model - - WK06-50CA-MRQ Applicable Material - OPP film or Kraft Paper band - Material Specification - Width: 30-150mm Thickness: 40-130 mic, Length: 500-1200meters Core: 76mm - Arch Size - 370*200 mm - Banding Size - Min: 50*10mm Max: 360*200mm - Table Height - 980mm - Power Supply - 220V 50hz 1phase or 110V 60hz 1phase - Power Rate - 1250W - Control System - PCB+ Schneider touch screen - Banding Speed - 27 bands/Minute - Banding Tension: 5-40N - Welding Method: Heat Sealing - NW - - 145KG - Machine Dimension - L 1253 x W 502 x H 1205mm
