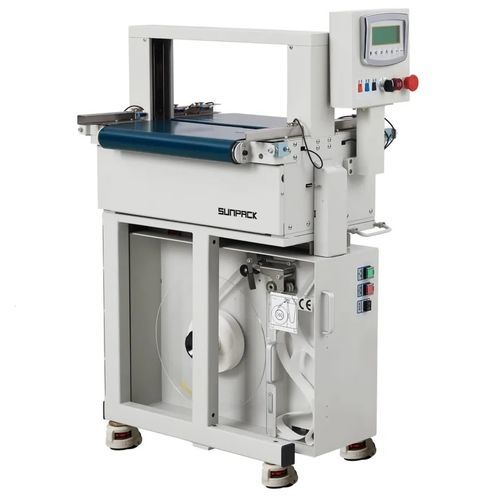

Automatic banding machine WK02-30CABOPP filmwith belt conveyorpaper belt
Add to favorites
Compare this product
Characteristics
- Specification
- automatic, OPP film, with belt conveyor, paper belt
- Application
- for the printing industry, for the pharmaceutical industry
Description
Features
*Belt table for infeed product automatically
*Side band inserting
*Heat Sealing Available for 0 or 1 or 2 bands selection
*Applicable for both paper band and OPP film
*AC motor Power
Model - WK02-30CAB
Applicable Material - OPP film or PP band
Material Specification -
Width: 29.2-29.6mm, Thickness: 120mic, Length: 500meters, Core: 40mm
Arch Size - 470*200mm
Banding Size - Min: 30*10mm Max: 460*200mm
Table Height - 980mm
Power Supply - 220V 50hz 1phase or 110V 60hz 1phase
Power Rate - 850W
Control System: - PLC+Key board control panel
Band QTY - 0 or 1 or 2 bands
Banding Speed: - 25 bands/Minute
Banding Tension:5-40N
Welding Method:Heat Sealing
NW - 115kg
Machine Dimension - L 611 x W 464 x H 1275mm
