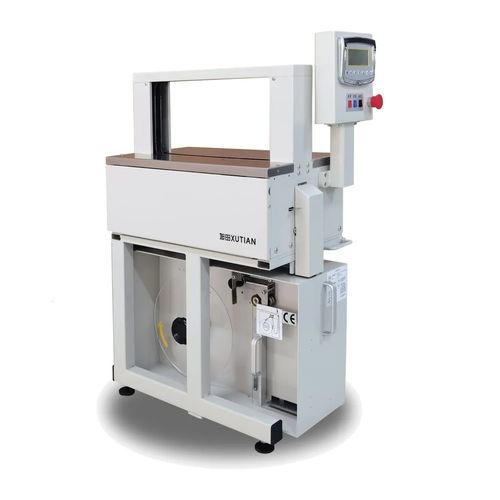

Automatic banding machine WK02-20C-H2paperOPP filmfor small boxes
Add to favorites
Compare this product
Characteristics
- Specification
- automatic, paper, OPP film
- Application
- for the printing industry, for the food industry, for small boxes
Description
Features
*Side control panel
*Sliding dispenser for easy banding roll loading
*60 Seconds Pre-Heating time
*Applicable for both paper band and OPP film
*AC motor Power
Model - WK02-20C-H2 -
Applicable Material - OPP film or PP band -
Material Specification -
Width: 29.2-29.6mm
Thickness: 120mic
Length: 500meters
Core: 40mm
Arch Size - 470*200mm -
Banding Size - Min: 30*10mm Max: 460*180mm -
Table Height - 980mm -
Power Supply - 220V 50hz 1phase or 110V 60hz 1phase -
Power Rate - 450W -
Control System - PCB+Key board control panel -
Banding Speed - 25 bands/Minute -
Banding Tension - 5-40N -
Welding Method - Heat Sealing
NW - 72kg
Machine Dimension - L 611 x W 364 x H 1175mm
