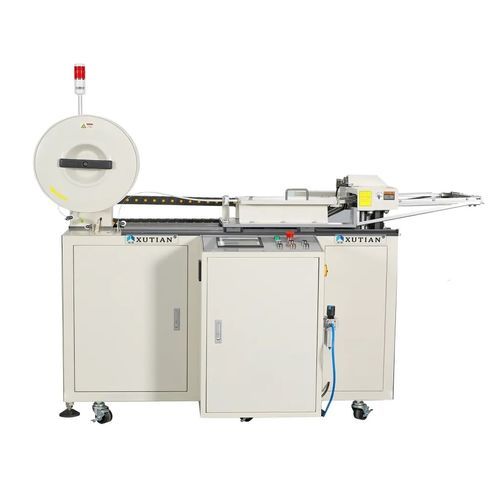

Automatic strapping machine Q8000G

pipetube

Features • - Manual and auto mode operation • - Loop ejecting function and refeed function • - Rigid structure design • - Built for 24 hours continuous operation • - PCB+LCD screen: visualize temperature and banding tension • - Banding count function • - Electronic double banding tension adjustment • - Easy strap loading and unloading The Q8 series automatic strapping machine is suitable for the strapping and packing of conventional objects and all kinds of cartons. The biggest feature of this series of machines is that it can use 0.35mm thick PP tape, which saves users a lot of consumable costs. Product name - Automatic Pipe/tube Strapping Machine Model No - Q8G Strap tape - PP strap Strap specification - Width 12mm,thickness 0.45-0.8mm Strapping reel - Core diameter:200mm, reel width:190mm Strapping height - 1150mm±30mm Max Strapping size - insider diameter: 500mm outside diameter: 1100mm width: 360mm Min strapping size - insider diameter: 360mm outside diameter: 420mm width: 150mm Servo slide parameters - Front and rear slide rail stroke: 900mm Power: 750W Left and right rail stroke: 600mm Power: 400W Cylinder parameters - Stroke: 100 Thrust: 686N (backward), 754N (forward) Machine net weight - 450kg
