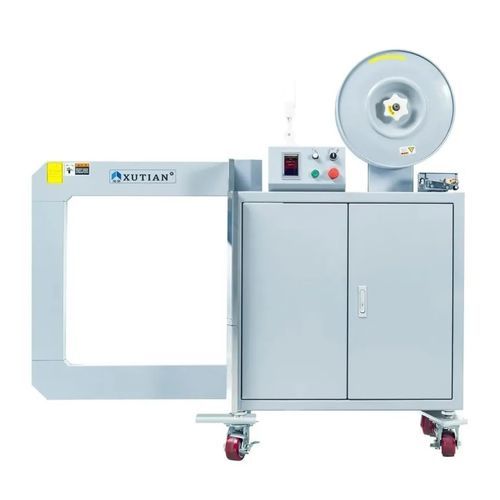

Automatic strapping machine Q8Yfor cartonsfor polypropylene straps220V single phase
Add to favorites
Compare this product
Characteristics
- Type
- automatic
- Product applications
- for cartons
- Type of strap
- for polypropylene straps
- Power supply
- 220V single phase
- Strap width
Min.: 9 mm
(0.354 in)Max.: 12 mm
(0.472 in)
Description
High speed side arch automatic strapping machine can make 1.5 seconds/strap
Product name - Side Arch Strapping Machine
Model No - Q8Y
Strap tape - PP strap
Strap specification - Width 9/12mm,thickness 0.35-0.65mm
Arch size(W*H) - 600 x 800mm(accpet customized)
Strapping size - Max 500 x 700 Min 100 x100mm
Power - 220V/ 50Hz 1 phase 500W
Control system - PCB(PLC is possible)
Motor - CHINA VTV DC motor
Strapping speed - 1.5 seconds/strap
Tension - 10-400N
Machine size - 1605*620*1652mm（W600*H800）
Welding method - Heating sealing
