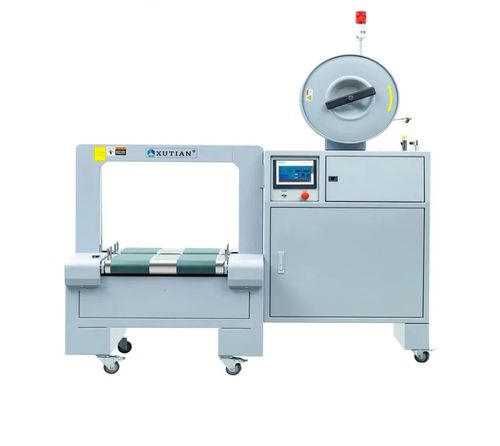

Fully-automatic strapping machine Q8LSC-M2

Features • - High speed full automatic strapping machine can make 1.7 seconds/strap • - 2 belts Table • - German Dunker DC motor • - Manual and auto mode operation • - Loop ejecting function and refeed function • - Rigid structure design • - Built for 24 hours continuous operation • - Banding count function • - Electronic double banding tension adjustment • - Easy strap loading and unloading Product name - Full automatic low table strapping machine with belts table Item no - Q8LSC-M2 Material - PP strap Material width*thickness - new material 10.5-11.5mm(width) x 0.4-0.65mm (thickness) roll Inner diameter - Ø200MM arch size - W600 x H500mm Max strapping size - L no limit*W500 x H450mm Min strapping size - L 120*W200*H100mm Loading weight - 2-25KG table height - 450－500mm or 600－680mm power - 220V50Hz 900W Contral system - PLC+Touch screen Motor - German Dunker DC motor strapping speed - 1.7 seconds/strap Table conveyor - 2 belts conveyor, 30m/min, frequency conversion speed regulation shell material - Carbon steel sprayed (light gray) Tension - 20-400N Welding method - Constant temperature melting Packing method - Manual or automatic 1-3 straps optional Mechanical size - L1700*W685*H1530mm/280kg Applicable industry recommendation： Paper products, semiconductors, food, pharmaceutical, etc Customizable items - 1. China DC motor or brushless motor 2. PCB+LCD screen control system 3. Arch size 4. 304 Stainless steel shell
