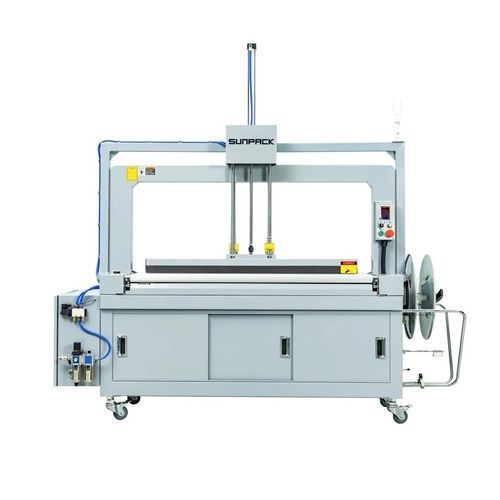

Fully-automatic strapping machine Q8AP

foodfor chemicalsfor polypropylene straps

Features • - High speed full automatic strapping machine can make 1.7 seconds/strap • - Aluminum Roller Table • - Manual and auto mode operation • - Loop ejecting function and refeed function • - Rigid structure design • - Built for 24 hours continuous operation • - PCB+LCD screen: visualize temperature and banding tension • - Banding count function • - Electronic double banding tension adjustment • - Easy strap loading and unloading Product name - Full Automatic Aluminum Roller Table Strapping Machine WIth Top Press Item no - Q8AP Material - PP strap Material width*thickness：new material 10.5-11.5mm(width) x 0.4-0.65mm (thickness) roll Inner diameter - Ø200MM arch size - W800 x H600mm Max strapping size - L no limit*W700 x H550mm Min strapping size - L 200*W165*H100mm Loading weight - 2-25KG table height - 780-850mm(Can be adjusted) power - 220V50Hz 900W Contral system - PCB+LCD Screen Motor - CHINA VTV DC motor strapping speed - 1.7 seconds/strap Table conveyor - Aluminum alloy roller conveyor, 30m/min, frequency conversion speed regulation shell material - Carbon steel sprayed (light gray) Tension - 20-400N Welding method - Constant temperature melting Packing method - Manual or automatic 1-3 straps optional Mechanical size - L1700*W685*H1530mm/280kg Applicable industry recommendation： - Daily chemicals, food, etc. Customizable items - 1. Dunker DC motor or brushless motor 2. PLC+touch screen control system 3. Arch size
