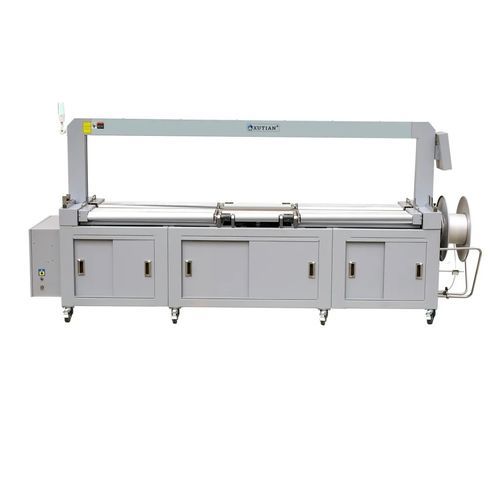

Fully-automatic strapping machine Q8VC2-T

for building materialsfor furniturefor polypropylene straps

Features *Auto feeding *High speed fully automatic strapping machine can make 1.7 seconds/strap *Steel Roller Table for heavy products *Manual and auto mode operation *Loop ejection and refeed function *Rigid structure design *Built for 24 hours continuous operation *Banding counting function *Electronic banding tension adjustment *Heater temperature display Product name - Fully automatic high table steel roller table strapping machine Item no - Q8VC2-T Material - PP strap Material width*thickness - Vergin PP material 10.5-11.5mm(width) x 0.4-0.65mm (thickness) roll Inner diameter - Ø200MM arch size - W2200 x H600mm Max strapping size - L No limit*W 2100 x H550mm Min strapping size - L 260*W260*H100mm Loading weight - 2-100KG table height - 780-850mm(Can be adjusted) power - 220V50Hz Contral system - PLC+Touch Screen Motor - CHINA VTV Brushless DC motor strapping speed - 1.7 seconds/strap Table conveyor - steel roller conveyor, 18m/min, frequency conversion speed regulation Tension - 20-400N Welding method - Persistant heat sealing Packing method - Manual or automatic 1-3 straps optional Applicable industry recommendation: - Hardware, electrical appliances, furniture, building materials, etc. Customizable items - 1. Dunker DC motor or brushless motor 2. PCB+LCD screen control system 3. Arch size
