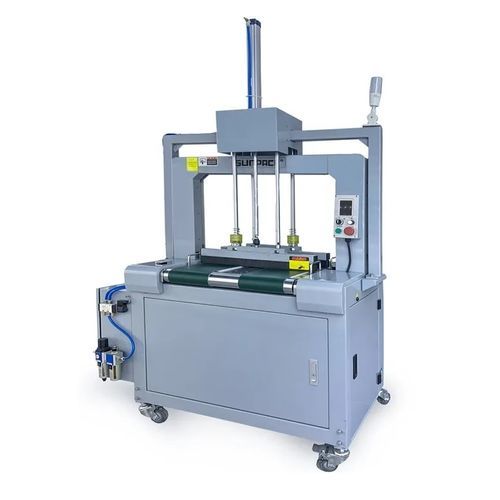

Fully-automatic strapping machine Q8S-M2P

for the pharmaceutical industryfor paperfor the food industry

Features • - High speed full automatic strapping machine can make 1.7 seconds/strap • - 2 Belts Table • - Manual and auto mode operation • - Loop ejecting function and refeed function • - Rigid structure design • - Built for 24 hours continuous operation • - PCB+LCD screen: visualize temperature and banding tension • - Banding count function • - Electronic double banding tension adjustment • - Easy strap loading and unloading Product name - Full Automatic 2 Belts Conveyor Table Strapping Machine With Top Press Model No - Q8S-M2P Applicable Material: PP strap PP Strapping Specification - Vergin material 9-12mm(width) x 0.4-0.65mm (thickness) Roll Inner Core Diameter - Ø200MM Arch Size - W800 x H600mm Max strapping size - L no limit*W700 x H550mm Min strapping size - L 120*W200*H100mm Loading weight - 2-25KG table height - 780-850mm(Can be adjusted) power - 220V50Hz 900W Contral system - PCB+LCD Screen Motor - Servo Motor strapping speed - 1.7 seconds/strap Table conveyor - 2 belts conveyor, 33m/min, frequency conversion speed regulation Frame Material - Carbon Steel Power Painted (light gray) Tension - 20-400N Welding method - Constant Heat Sealing Packing method - Manual or automatic 1-3 straps optional Air Supply - 0.6-0.7Mpa Mechanical size - L1700*W685*H1530mm/280kg Applicable Industry Recommendation: - Paper products, semiconductors, food, pharmaceuticals, etc. Customizable items - 1. DC motor 2. Simens PLC+Touch screen control system 3. Arch size
