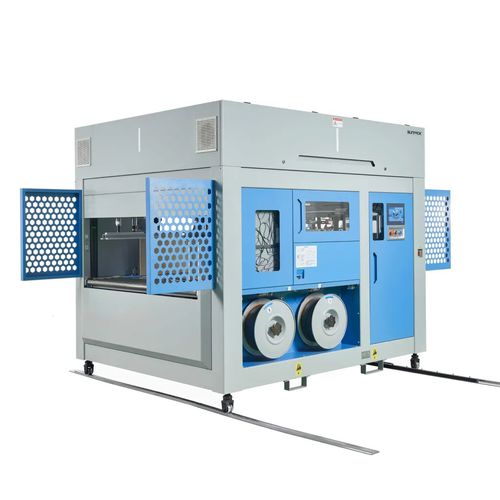

Automatic strapping machine XT-HSD-02

for corrugated cartonsfor polypropylene strapsfor the packaging industry

Features *Inline parallel strapping *2 Electrical movable sealing heads *Automatic teaching sytem for the first bundle dimensions *No air supply is required. Pure electrical. *Non Stop change over with ultrasonic PP strap welding system. *Schneider PLC and HMI *4 sides squaring *Power roller outfeed conveyor *Easy connection to upstream and downstream equipment Model No. - XT-HSD-02 Dual heads automatic strapping machine Control system - PLC+Touch screen Sealing method - Heating sealing Strapping speed - max 27 bundles /min (W≤300mm) Arch size - W1950*H540mm Material - PP strap Material specification: - W5mm, thickness 0.35-0.75mm Roll core diameter: - 200mm Table loading weight: - 2-25kgs Max strapping size: - L1300*W1600*H350mm Min strapping size: - L240*W180*H50mm Table height - 850-1000mm adjustable Power - 380v 50hz 3phase , 4.2kw Machine dimension: - L2300*W2350*H2385mm
