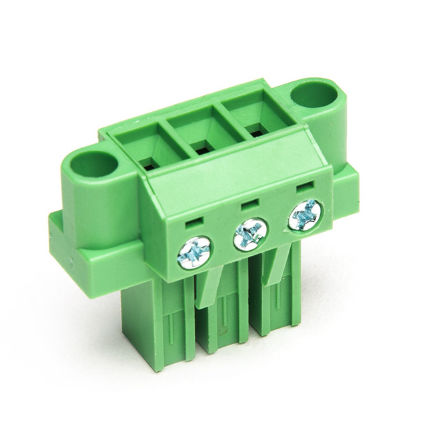

Screw connection terminal block F77-7-7.62

PRODUCTS The company's main products are: terminal desk, round hole PIN, PLCC, Ejctor header, Box header, Pin header, Female header, IC Socket and so on. The products have passed UL certification and are widely used in industrial control industry, power system, communication equipment, instruments, computers, programmable controllers, alarms, rectifiers, elevators, household appliances, digital cameras and other fields. Certifications: UL, TUV, SGS/CQC requirements RoHS Directive-compliant OEM/ODM services are provided Materials: Screws: 4.0 steel zinc-plated Wire guard: brass, Ni-plated Pin header: brass, tin-plated Housing: German brand PA66, UL94V-0 Main parameters: Pitch: 10.16mm Rated voltage: 300V Rated current: 57A Contact resistance: 20mΩ Insulation resistance: 5000MΩ/1000V Withstanding voltage: 2500V AC/minute Wire range: 6 to 20AWG Temperature range: -40 to 105°C Maximum soldering: 250°C, for 5 seconds
