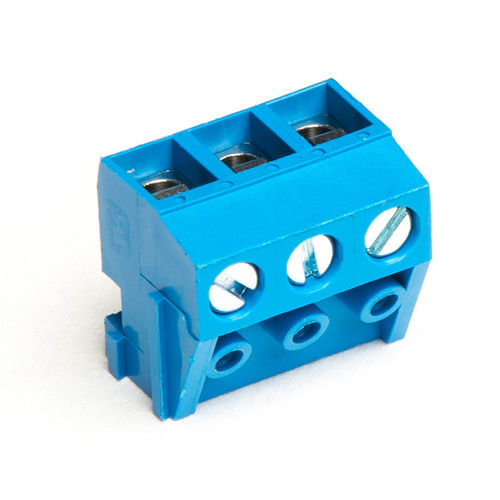

Plug-in terminal block F71-1-5.0screw connectiontripolar
Add to favorites
Compare this product
Characteristics
- Mounting
- plug-in
- Connection
- screw connection
- Other characteristics
- tripolar
- Current
Max.: 10 A
Min.: 0 A
- Nominal voltage
300 V
Description
5.0mm Wire protector terminal block,pluggable type,
Housing: German brand PA66,
UL94V-0,UL & TUV-certificate
Voltage rating: 300V
Current rating: 10A way (maximum)
Wire range: 14 to 22AWG
small orders are acceptable
Technical Data
Material
ContacHmetal housingKopper Alloy with Ni plated Terminal screw Steel gaivanized with Cr3+ plated Wire guard: Copper Alloy Tin plated Insulator body(housing) Polyamide(UL9AV-0)
Elec trical
Voltage rating: 300VAC Current rating: 10 Amps/way max Contact résistance: 20mft(max)
Withstanding Voltage: 2500VAC(1min) Test time=60se Wire range: 14-22AWG Torque A.0kgf.cm/M3
Mechanical
Operating température: -A0°C to +105°C
Soldring reliability:
Test temperature= 250°C±10°C 5 seconds max
Catalogs
No catalogs are available for this product.
See all of Dongguanshi Welink Electronic Technology Co.,Ltd‘s catalogsOther Dongguanshi Welink Electronic Technology Co.,Ltd products
F7 For plug type
