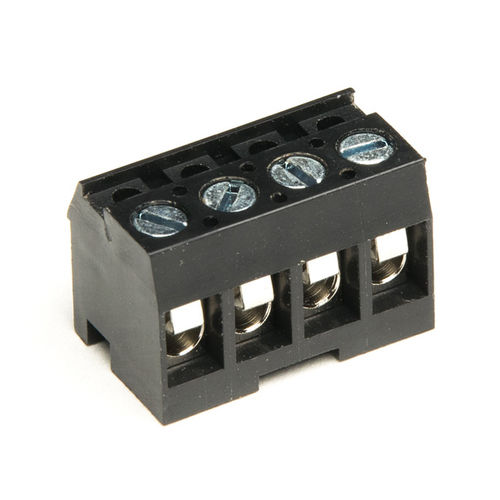

Plug-in terminal block F71-3-5.0screw connection
Add to favorites
Compare this product
Characteristics
- Mounting
- plug-in
- Connection
- screw connection
- Cross-section
5 mm²
(0.01 in²)- Current
Max.: 10 A
Min.: 0 A
- Nominal voltage
300 V
Description
5.0mm Wire protector terminal block,pluggable type,
Housing: German brand PA66,
UL94V-0,UL & TUV-certificate
Voltage rating: 300V
Current rating: 10A way (maximum)
Wire range: 14 to 22AWG
Technical Data
Material
ContacHmetal housingKopper Alloy with Ni plated Terminal screw Steel gaivanized with Cr3+ plated Wire guard: Copper Alloy Tin plated Insulator body(housing) Polyamide(UL9AV-0)
Elec trical
Voltage rating: 300VAC
Current rating: 10 Amps/way max Contact résistance: 20mΩ(max)
Withstanding Voltage: 2500VAC(1min)
Test time=60se
Wire range: 14-22AWG
Torque 4.0kgf.cm/M3
Mechanical
Operating température: -40°C to +105°C
Soldring reliability:
Test temperature= 250°C±10°C 5 seconds max
