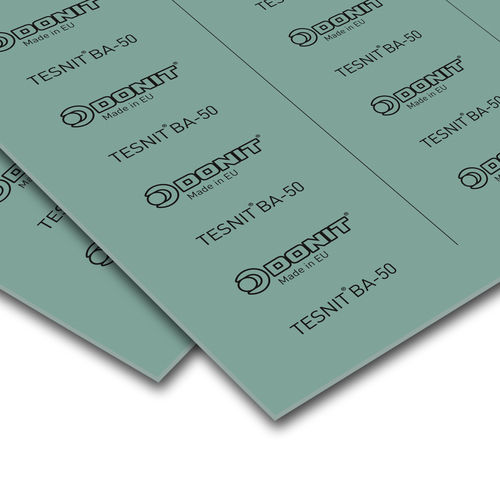

Graphite gasket sheet TESNIT® BA-50
steelwire meshNBR

graphite gasket sheet
graphite gasket sheet
Add to favorites
Compare this product


Characteristics

Material
graphite, steel, wire mesh, NBR, aramid fiber, PTFE
Product applications
water, for marine applications, sheet
Other characteristics
asbestos-free
Temperature limit

220 °C
(428 °F)

Pressure limit

80 bar
(1,160.3 psi)

Description

TESNIT® BA-50 has good thermal and chemical resistance, which makes it appropriate for use in a wide range of applications. TESNIT® BA-50 is well suited for use with potable water supply and shipbuilding. COMPOSITION Aramid fibers, inorganic fillers, NBR binder. Optional steel wire mesh reinforcement. APPROVALS AND COMPLIANCES DNV GL DVGW DIN 3535-6 EC 1935/2004 ELL (hot) SVGW DIN 3535-6 TA Luft (VDI 2440) TZW W270 WRAS SURFACE TREATMENT Standard: 4AS. Optional: graphite or PTFE. SHEET DIMENSIONS Size (mm): 1500 x 1500 | 3000 x 1500 | 4500 x 1500 Thickness (mm): 0.5 | 1.0 | 1.5 | 2.0 | 3.0 Other sizes and thicknesses available on request
