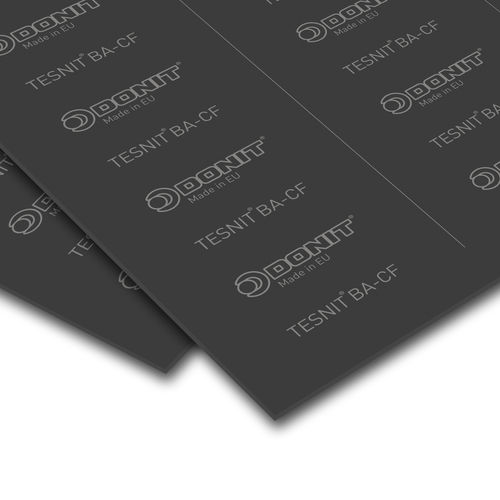

Carbon gasket sheet TESNIT® BA-CFNBRfor the petrochemical industryasbestos-free
Add to favorites
Compare this product
Characteristics
- Material
- carbon, NBR
- Product applications
- for the petrochemical industry
- Other characteristics
- asbestos-free, high-temperature
- Temperature limit
300 °C
(572 °F)- Pressure limit
120 bar
(1,740.5 psi)
Description
This is a prime heavy-duty and multi-purpose gasket material specifically formulated for thermo-mechanically demanding applications in the chemical industry and steam supply. It is impervious to organic fluids (such as fuels, hydrocarbons, alcohols, mineral oils, lubricants, and refrigerants), salt-reach or alkaline media and inorganic or organic weak acids, and superheated steam and various gases, etc.
Composition
Carbon fibers, inorganic fillers & NBR binder (carbon steel wire mesh insert on request)
APPROVALS AND COMPLIANCES
BAM (oxygen)
BS 7531 Grade X
DNV GL
DVGW DIN 30653 (5 bars)
DVGW DIN 3535-6
Surface treatment
Standard: 4AS. Optional: graphite or PTFE.
SHEET DIMENSIONS
Size (mm): 1500 x 1500 | 3000 x 1500 | 4500 x 1500
Thickness (mm): 0.5 | 1.0 | 1.5 | 2.0 | 3.0
