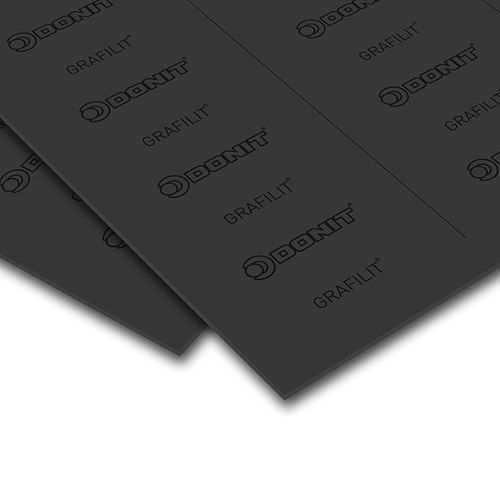

Expanded graphite gasket sheet GRAFILIT® EM
stainless steelsteelfor the petrochemical industry

expanded graphite gasket sheet
expanded graphite gasket sheet
Add to favorites
Compare this product


Characteristics

Material
expanded graphite, stainless steel, steel
Product applications
for the petrochemical industry, industry, distribution, for high-temperature applications, sheet
Other characteristics
asbestos-free, high-temperature, chemical-resistant
Temperature limit

Max.: 700 °C
(1,292 °F)

Min.: -200 °C
(-328 °F)

Pressure limit

150 bar
(2,175.6 psi)

Description

GRAFILIT® EM is an expanded graphite-based gasket material endowed with expanded stainless steel reinforcement for high operation pressures, including cycling loading. Uniform surface pressure distribution provides excellent thermomechanical properties and sealing characteristics, and increases blowout resistance. It is particularly suitable for high-temperature applications in the petrochemical industry and steam supply. Composition Expanded natural graphite (>99% purity), expanded stainless steel insert (AISI 316L; 0.15 mm) APPROVALS AND COMPLIANCES ABS DNV GL DVGW DIN 3535-6 FIRE SAFE ISO 10497 TA Luft (VDI 2440) SHEET DIMENSIONS Size (mm): 1000 x 1000 | 1500 x 1500 Thickness (mm): 1.5 | 2.0 | 3.0
