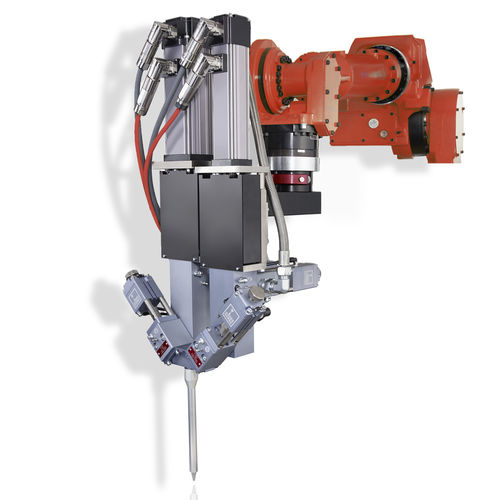

Piston mixer-dispenser vectomix

siliconeepoxy resinpolyurethane glue

High precision dispensing of filled materials The vectomix is used to handle multi component materials. Due to its compatibility and modularity, two vectodis single component piston metering systems with equal or different sizes are used. They can be connected by simply using a mixing block onto the outlet of which a disposable plastic mixer is mounted. The use of a hose package with a decentralized mixing system is also possible. Just a suitable material supply and metering computer is required. Features and benefits • Modular construction enables a wide range of use, variable mixing ratios and flow rates • High precision through metering and mixing at the point of application • High process security through: • construction with reduced dead space • de-airing on the top of the metering chamber • metering chamber with pressure monitoring • Reduction of the maintenance through: • specially guided metering pistons • coupling between drive and metering piston • hermetic sealing of the piston with additional sealing liquid Control unit To control these systems a metering computer with touch screen terminal is used. With this metering computer all applications that can be achieved with vectodis can be parameterised and different metering processes can be memorised. The control unit is wired into a control cabinet. The metering computer can also handle applications where a speed proportional material supply is required, for example in combination with a robot.
