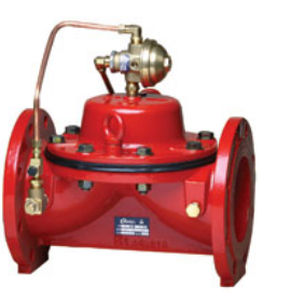

Diaphragm valve 100FE
pneumatically-operatedshut-offfor water

Diaphragm valve - 100FE - Dorot Control Valves - pneumatically-operated / shut-off / for water
Diaphragm valve - 100FE - Dorot Control Valves - pneumatically-operated / shut-off / for water
Add to favorites
Compare this product


Characteristics

Type
diaphragm
Operation
pneumatically-operated
Function
shut-off
Media
for water

Description

Description The valve closes drip tight when the flow rate exceeds the normal value (due to pipe rupture). The valve will manually re-set open after fixing the break. Features - Hydraulic burst protection. No electronic controllers are used - Simple and reliable design - Low losses Purchase Specifications The valve will be hydraulic, direct sealing diaphragm type, which allows inline maintenance. No stem, shaft or guide bearing will be located within the water passage. The valve will be activated by the line pressure or by an external hydraulic or pneumatic pressure. The valve will be operated by a pressure reducing differential pilot valve for closing when the flow through the main valve exceeds the safe level, regardless of pressure variations. The valve and the controls will be a Dorot Series 100 valve or similar in all aspects. Quick Sizing - Valve size same as line or one size smaller - Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec) Design Considerations - A 1/2" pressure sensing port should be provided, upstream of the valve - The valve is adjusted to close when the flow rate exceeds the maximal design flow by 10%-20% - An additional pressure loss of about 2 mwc is created by the orifice plate (at the normal flow)
