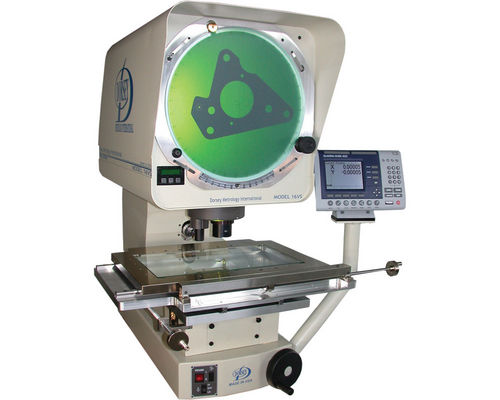

Optical comparator 16" | 16VS

Features: - 16"(400mm) Vertical screen for optimum viewin - Erect profile image with fully corrected surface reflection image - High resolution ground glass screen with calibration reticle, 90 degree cross lines and chart clips - Machined chart ring with vernier protractor - Electronic rotary screen protractor with selectable 1 minute or 1 /100 of a degree resolution - Coated telecentric parfocal optics - Quick change single lens mount - Fiber optic surface illumination - Integrated hood - Nickel plated, completely cast iron workstage .Triple axes solid crossed roller stage system .Twin universal dovetails .18" x 5" Overall size .10" X Axis travel with "glide release" .6" YAxis travel (rise a fall) .110 lbs. Capacity .±15 Degree true parfocal helix table adjustment with 5 minute vernier - Available with 3 axes of measurement - Optional 20" extended stage travel on "X" axis Available with internal or external edge sensing Optional swing away lamp house arm - Optional motorized CNC full computer controlled readout systems - 10X Lens system included - NIST traceable calibration certificate - 2 Year limited warranty
