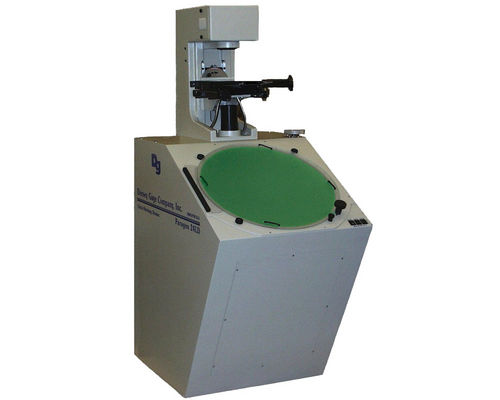

Vertical profile projector 24" | 24LD

Vertical profile projector - 24" | 24LD - Dorsey Metrology International
Vertical profile projector - 24" | 24LD - Dorsey Metrology International
Add to favorites
Compare this product


Characteristics

Options
vertical

Description

The 24LD is a large screen comparator with a compact size and a competitive price. The 24LD has the largest travel in its class. The availability of standard and custom tooling makes this an extremely versatile machine capable of inspecting a wide variety of parts. Typical applications include inspection of electronic components, stampings, surgical equipment, molded and extruded parts as well as machined parts of all shapes. The 24" angled screen is also ideal for tracing magnified drawings on the screen and reverse engineering projects. Features: 24"(600mm) Angled screen for optimum viewing of a reversed image High resolution ground glass screen with calibration reticle, 90° cross lines and chart clips Output for electronic rotary screen protractor with selectable 1 minute or 1/100 of a degree resolution Machined chart ring with vernier protractor High specification table (Part# 6x4MN-1) Quartz halogen light source. Fan cooled and electronically dimmed for long lamp life Coated telecentric parfocal optics Optional surface illumination Internal or external edge detection available Welded plate steel case fabrication NIST traceable calibration certificate 2 Year limited warranty
