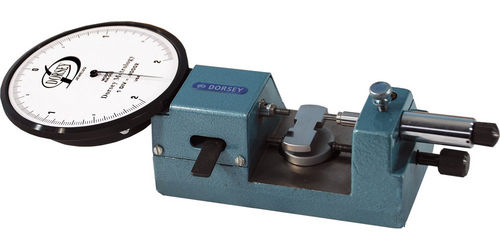

Adjustable snap gauge 0.00002" | J2

The model J2 jaw gage features Dorsey’s proven precision lapped chrome/steel bushing in a rigid cast iron frame. A series of interchangeable contacts, and adjustable two axis rest stage along with a micrometer tail stock combine to make the J2 jaw gage suitable for most high accuracy OD inspection tasks. Jaw Gage Features: Ideal for screw machine and small parts applications Check diameters, widths, lengths, and locations Specifically designed for Dorsey’s high amplification dial indicators with graduations as fine as .00002" (0.0005mm) Utilize dial and digital indicators, or electronic displays and is SPC compatible Standard thumb actuated retraction of .100" makes part loading easy Tailstock fine adjustment of 1" maintains contact parallelism throughout the gaging range Interchangeable contact points are available for a variety of part configurations Each set of contacts utilizes a shank-lock design for maximum holding pressure Backstop for locating the part may be adjusted both horizontally or vertically to suit the part configuration
