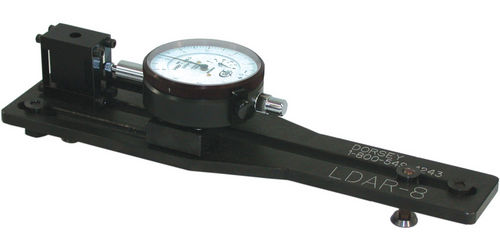

Depth micrometer 2 - 8" | LDAR-6, LDAR-8dial
Add to favorites
Compare this product
Characteristics
- Measurement
- depth
- Display
- dial
Description
This economical, heavy duty production gage features a rigid steel plate frame and our bullet proof reed spring gaging transfer. The LDAR mechanism is impervious to coolants, dirt, and contaminants and offers great repeatability.
Midget Reed Gages Features:
Standard with partl# 2DM125-05 .0005" graduation dial indicator
Micrometer style fine adjustment makes setting this gage fast and easy
+/- .050" gaging travel on reed mechanism
Three point hardened steel rests allow .375" frame clearance and can be adjusted to accomodate a wide variety of parts
0 - .5" gaging depth adjustment
