Clean room pass-through

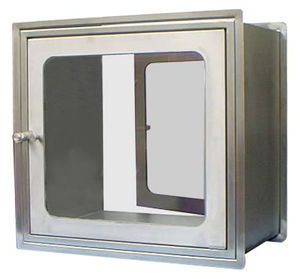

304 Grade Stainless Steel Transfer Hatch with glazed doors. Available as three standard sizes (non standard sizes available) Applications Transfer Hatches are used to allow the transfer of materials between Clean Rooms and support areas whilst minimising the risk of airborne cross-contamination. Features The hatches have two stainless steel framed doors glazed with toughened glass which are vertically hinged with stainless steel hinges. The doors are mechanically interlocked to prevent them both being opened together and close against magnets. These doors are deliberately not sealed in order to allow a small volume of air from the clean side (which is normally at a higher pressure) to continuously flush the interior of the hatch. This volume is so small by comparison with room air flows that it will have no perceptible effect on room pressures. The hatches are supplied with installation flanges to secure them in the wall and can be fitted flush or protruding.
