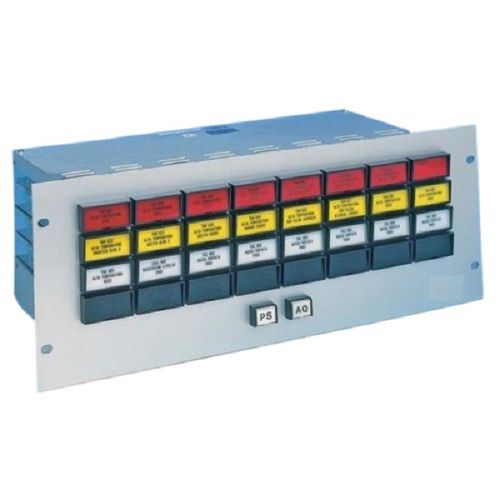

Rack-mount alarm annunciator ISA-RACK

RACK - Pre-wired alarm management system The Dossena ISA-RACK series alarm systems satisfy all supervision and management needs according to ISA standards. These devices allow changing the input state of the contacts to pass from the rest state to the alarm condition. There will be an optical and acoustic signal with behavior linked to the ISA sequence. The ISA-RACK series allows the supervision of 8, 16, 24, etc. alarm points. They are made for fixing to the front of the electrical panel. ISA-RACK systems are available with LED light points. The ISA-RACK series is very intuitive to use thanks to the presence of simple buttons. The ISA-RACK series has small overall dimensions, is simple to install and is used in multiple applications, for example the need for control and visualization of chemical and oil plants, production processes, industrial boilers, etc. Possible executions of alarm systems according to ISA alarm standards are available on request, made with separate components to be mounted on the back of the panel, with a display panel on the front of the panel. alarm sequences settable according to ISA S18.1 alarm display with glass measuring 48x24mm alarm inputs (NO and/or NC) 1 relay for acoustic signal 1 repetition relay for each alarm
