Insulation monitor for medical applications SRI3/H2FL6
for AC networksfor three-phase systemsfor low voltage network

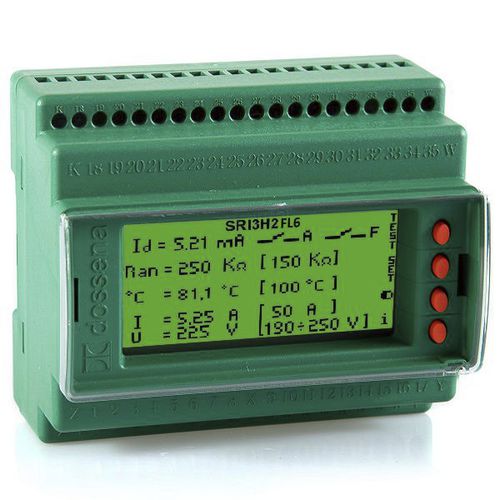

Insulation monitor for medical applications - SRI3/H2FL6 - DOSSENA - for AC networks / for three-phase systems / for low voltage network
Insulation monitor for medical applications - SRI3/H2FL6 - DOSSENA - for AC networks / for three-phase systems / for low voltage network
Add to favorites
Compare this product


Characteristics

Options
for AC networks, for three-phase systems, for low voltage network, with insulation fault location, for single-phase electrical networks, with automatic reset, with manual reset, with overcurrent protection, with temperature monitoring
Contact configuration
2 NC, 2 NO
Mounting
DIN rail
Communication
RS485, Modbus RTU
Applications
for medical applications

Description

SRI3/H2FL6 - Fault Locator 6 starts - 6 Din modules Ran: 50 KΩ ÷ 1MΩ Developed for medical and hospital environments, the SRI3/H2FL6RS485 insulation controller allows you to continuously monitor the status of LV networks with neutral isolated from earth (IT-M systems). The controller is able to detect insulation defects due to the resistive component even in the presence of parasitic DC voltages. The instrument signals the first earth fault on the display indicating both the value in KΩ of the leakage and the maximum fault current that could flow through the resistive leakage itself. The device is also able to monitor the temperature of the isolation transformer, current overload and over/under voltage. All alarms detected by the insulation controller are signaled visually on the display and visually/acoustically on the appropriate PSR3 remote repetition panel. Fault localization occurs via TD15 model toroids installed one for each start-up to be checked. When an insulation fault appears, SRI3/H2FL6 starts a search procedure at the end of which it signals on the display which start-up has an insulation fault. SRI3/H2FL6RS485 can be equipped with a maximum of 6 TD15 model toroids (15mm diameter split toroid).
