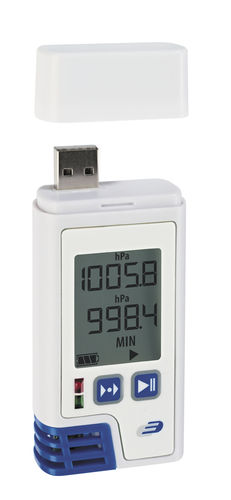

Temperature and humidity data logger LOG 220 PDF

barometric pressureUSBwith LCD display

LOG220 PDF data logger for temperature, humidity and barometric pressure • Memory size up to 60,000 records • Usable without software (default settings) • Automatic PDF creation • Movement sensor for shock recording e.g.: door or windows closing • Adjustable recording interval: 10 seconds…24 hours) • Max-Min-Display memory (resettable) • Time marking functions for measuring results • Battery lifetime appr. 4 years (recording interval >15 minutes) • Status- and Alarm-LEDs • Includes wall mount Logging interval:10 sec ... 24 hrs. preset 5 min. Measuring range: -40°C ... +70°C / 0...100% rF / 300...1100 hPa Resolution: 0,1°C / 0,1 %rF / 0,1 hPa Accuracy: ±0,5°C (0..+60°C), otherwise ±1,0°C / ±3%rH (40..60%), ±3.5%rH (20..40% and 60..80%), otherw. ±5%rH / +- 1 hPa between 900...1100 hpA, 0,5% of end value remaining ra. Memory capacity: 60.000 measurements Interface: USB Power supply: 1x 3,6V 1/2 AA batteries Housing: ABS plastic Dimensions: 91.5 x 42 x 20 mm (L x W x H) Weight: 200g
