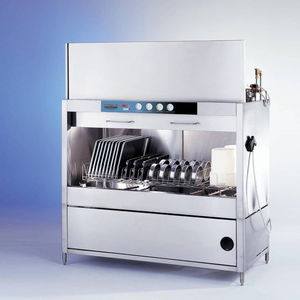

Water washing machine LD-20

sprayautomaticprocess

For double the capacity, consider the Douglas Machine Model LD-20. It has the same lift-door design, but a 7.5 H.P. pump and a flexible racking system that holds up to 20 pans. This Douglas Machine model is also equipped with rotating wash arms for maximum cleaning effectiveness and a digital display to monitor key performance functions and make the machine easier to operate and maintain. FEATURES • Rugged Stainless Steel Construction • Front Loading, Lift Door Design • Powerful 7.5 H.P. Wash Pump • High Efficiency Motor • Recirculating Detergent Wash Tank • Separate Fresh Water, Sanitizing Rinse Tank • Automatic Water Level Controls • Pre-Programmed Digital Control and Information Center • Processes Up to 10 Batches an Hour • Wash & Rinse Temperature and Pressure Gauges • Self-Contained Water Heating • Standard and Custom Wash Racks • External Rinse Hose and Spray Gun • Easy to Clean Filtration System • Rotating Wash Arms Fitted with V Jets to Cut and Remove Stubborn Soils • One Year Warranty Program The LD-20 is a lift door, front loading, batch washer that is designed to wash and sanitize various containers commonly found in the bakery, food processing, nutraceutical and distribution industries. It is also suitable for many industrial applications. The machine features two stainless steel tanks that can be heated with electric, gas or steam booster heaters. One tank is used to recirculate detergent wash water and the other is for dispensing sanitizing rinse water. Wash times are pre-programmed at 4, 6 or 8 minutes. Regardless of the wash cycle selected, each is followed by a 30 second sanitizing rinse and a 60 second steam exhaust cycle.
