Water washing machine 1536 series

sprayautomaticfor the food industry

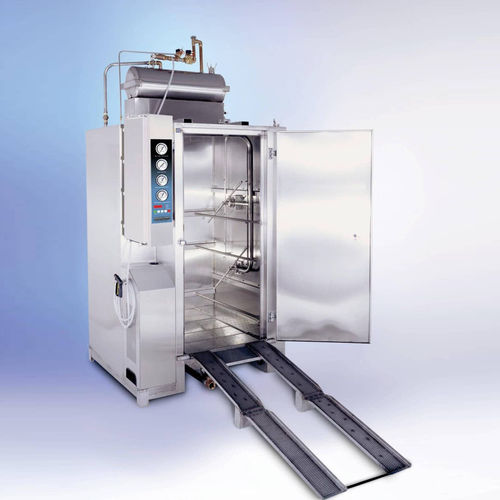

This Douglas Machine Model 1536-N features a front mounted pump design, 15 H.P. motor and a 36 pan capacity. The wash chamber measures 32" wide x 38½" deep x 76½" high. This model is supplied with special "roll-in" wash racks that are designed and built to match your specific containers. FEATURES • Rugged Stainless Steel Construction • Front Mounted, 15 H.P. Wash Pump • High Efficiency Motor • Recirculating Detergent Wash Tank • Separate Fresh Water, Sanitizing Rinse Tank • Automatic Water Level Controls • Pre-Programmed Digital Control and Information Center • Processes Up to 10 Batches an Hour • Wash & Rinse Temperature and Pressure Gauges • Self-Contained Water Heating • Standard and Custom Wash Racks • External Rinse Hose and Spray Gun • Easy to Clean Filtration System • Rotating Wash Arms Fitted with V Jets to Cut and Remove Stubborn Soils • Designed for Pit or Ramp Installations • One Year Warranty Program The 1536-N is a walk-in type, batch washer that is designed to wash and sanitize various containers that are commonly found in the bakery, food processing, nutraceutical and distribution industries. It is also suitable for cleaning racks and carts that can fit into a 32"wide x 38 Zi" deep x 76 ii" high wash chamber. The machine features two stainless steel tanks that can be heated with electric, gas or steam booster heaters. One tank is used to recirculate detergent wash water and the other is for dispensing sanitizing rinse water. Wash times are pre-programmed at 4, 6 or 8 minutes. Regardless of the wash cycle selected, each is followed by a 30 second sanitizing rinse and a 60 second steam exhaust cycle.
