Pneumatic brake 130 series

multiple-discspringhigh-torque

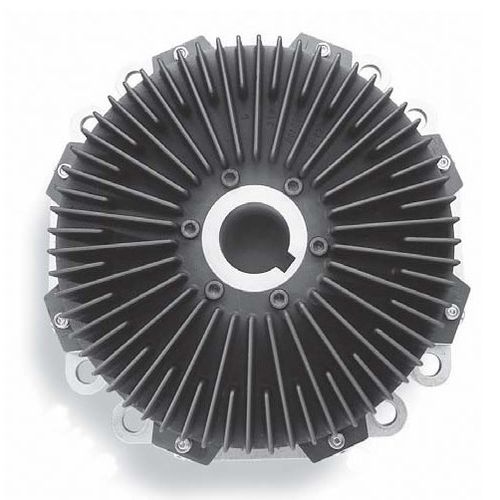

The 130 Series Dual Disc Brake, named for its thirteen-inch diameter discs, offers high performance in a torque range from 23 lb-inches up to 9,840 lb-inches. As an integral part of a high-performance unwind package, the 130 series brake allows you to deliver the appropriate torque level needed for a particular application by allocating actuation of the right number of cylinders, from one up to eight. The term 130 ‘Series’ is derived from ‘13’ inches plus our use of the third digit in the range of values from 131 to 138 to signify the number of friction pads selected for a brake. Aside from their heavy-duty, ductile iron disc construction and expanded surface for rapid heat dissipation, 130-Series brakes feature DFE’s time-proven Universal Actuator technology: • Hassle-free changeout of worn pads, without tools, via push-button spring locks • Limited-travel pistons that can’t scratch the disc • Cylinder return springs that cannot puncture the diaphragm • Able to be retrofit into dual disc brakes of other manufacturers • DFE’s popular ‘No-squeal Warranty’ SPECIFICATIONS • Disc/Hub Inertia: 56.9 Slug-in2 • Max. Torque: 9,840 in-lbs • Disc/Hub Weight: 94.6 lbs. • Max. Ship Wt. (with adapter): 130 lbs. • Min. Shaft Length: 7.3 in. To see if a brake in the 130 Series is the right size for your application please note its torque range listed above and review the 130 Series Brake section of DFE’s full Brake Catalog for detailed sizing information, options and accessories. OPTIONS & ACCESSORIES • Non-Standard Key (NSK). For shafts having a different sized key other than the standardized ones usually used (option).
